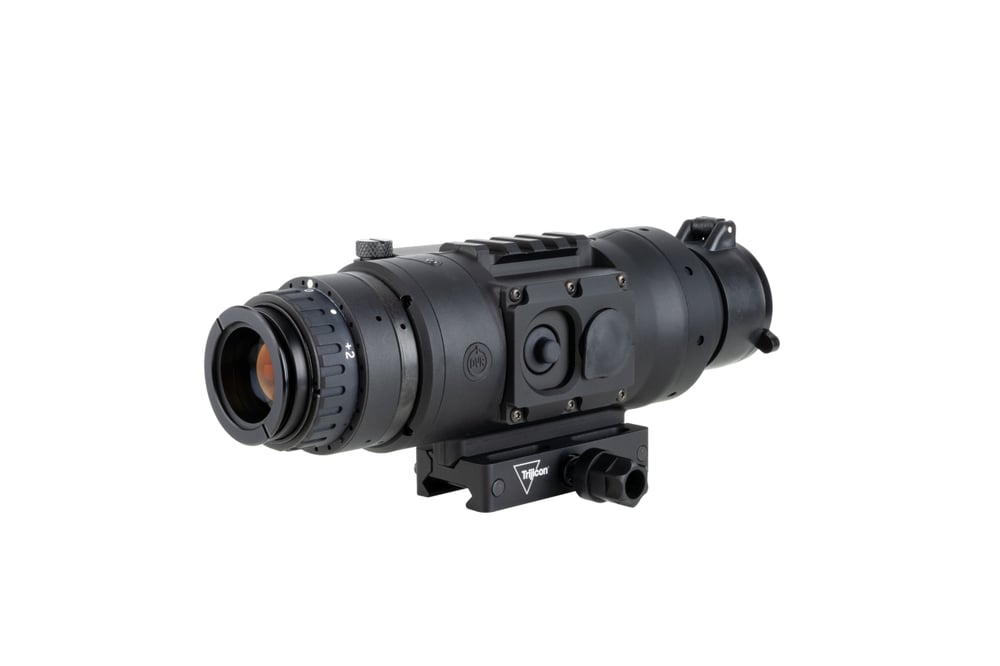

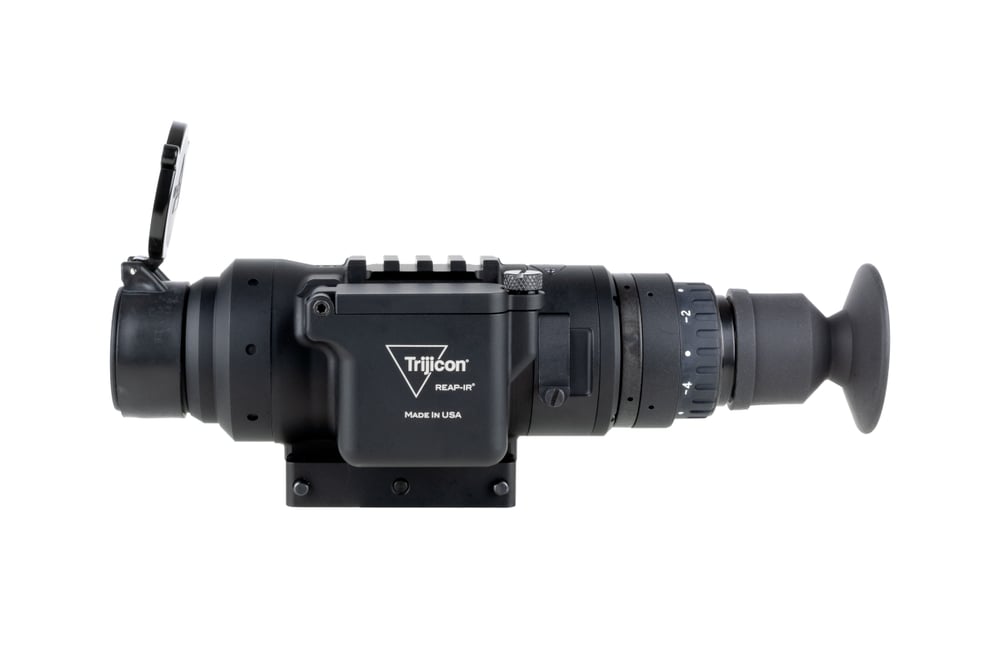

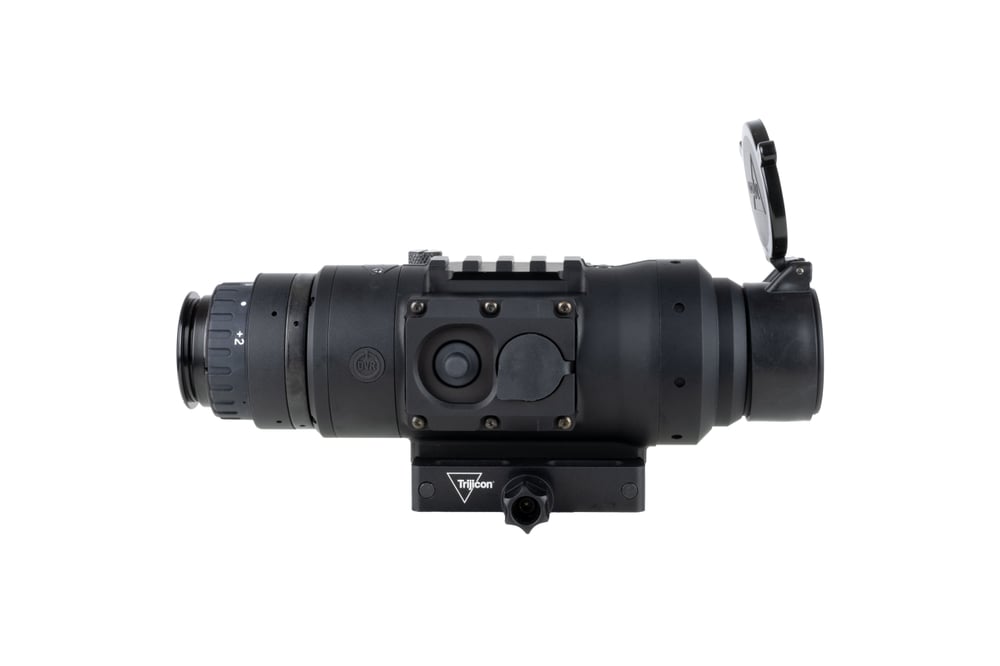

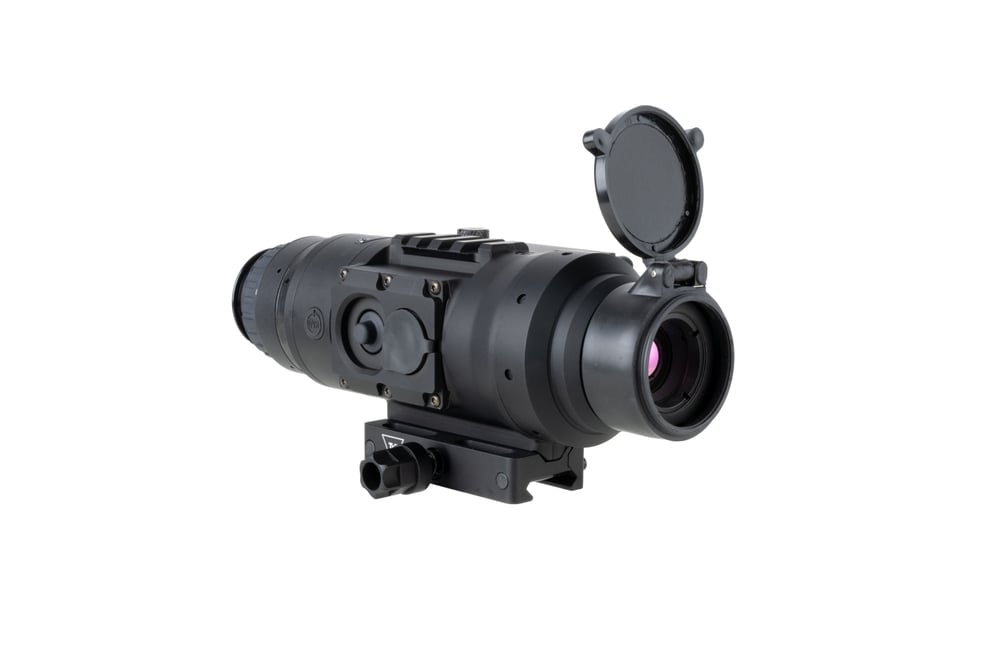

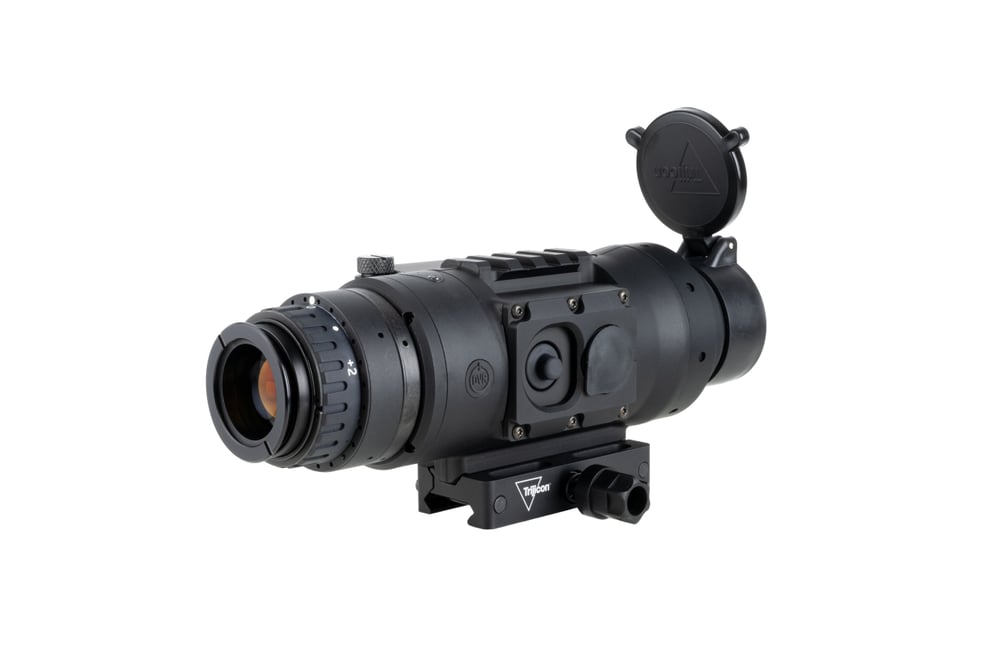

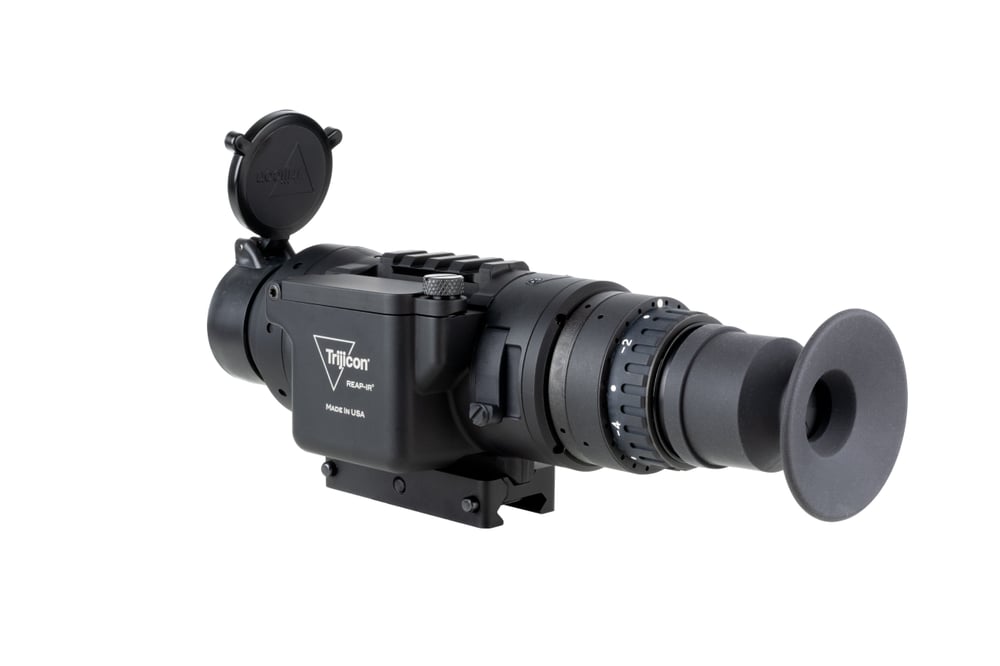

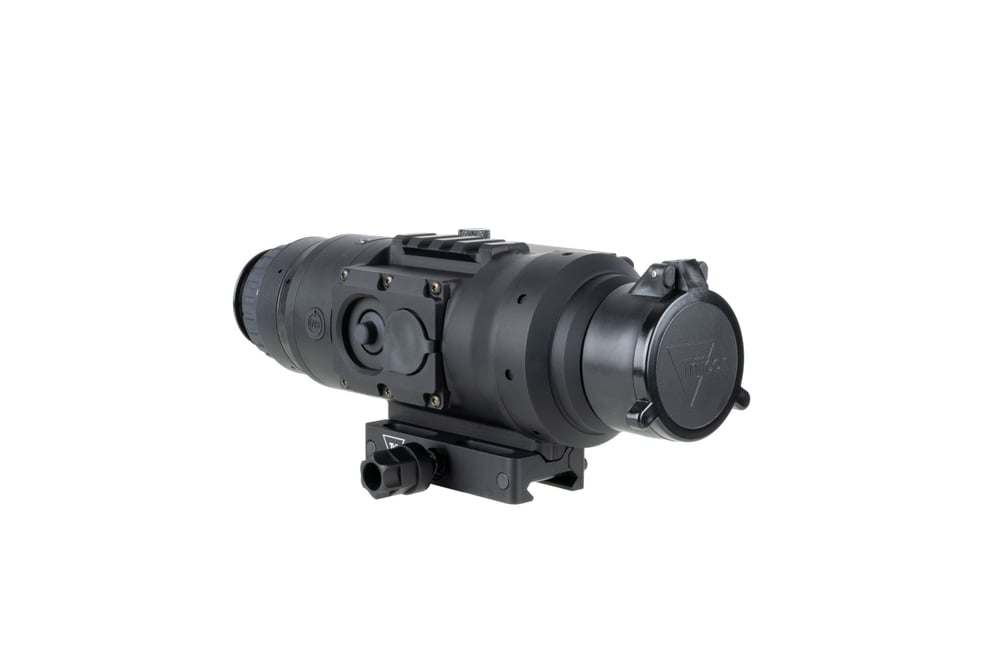

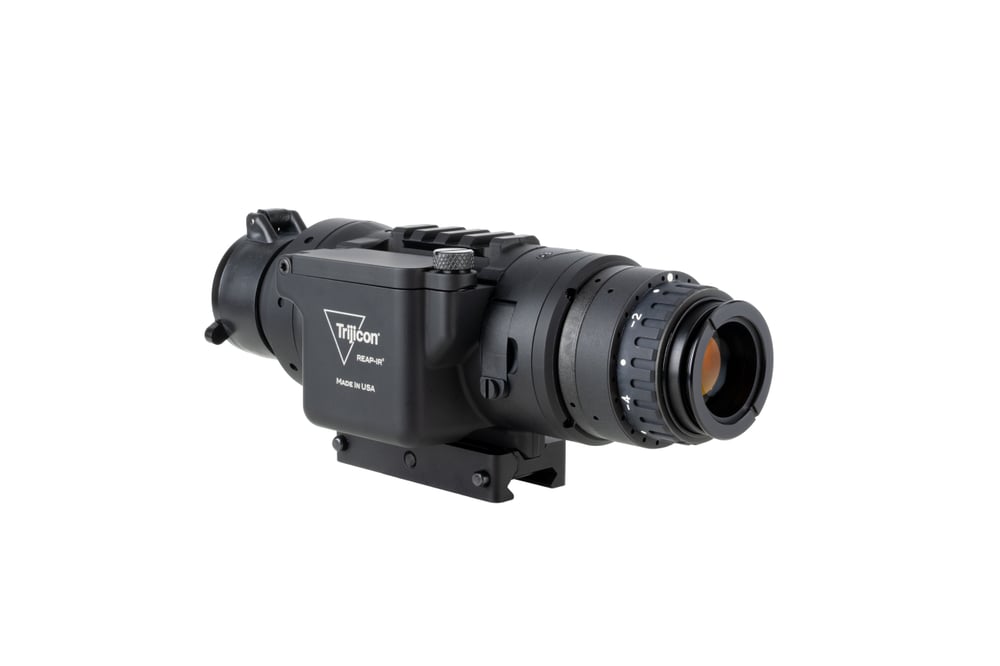

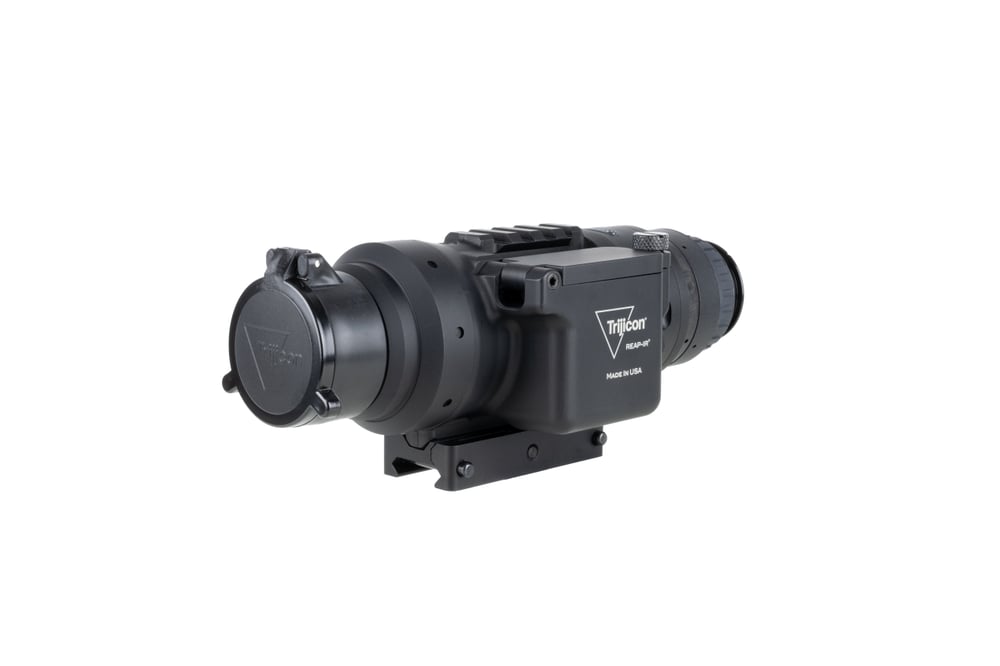

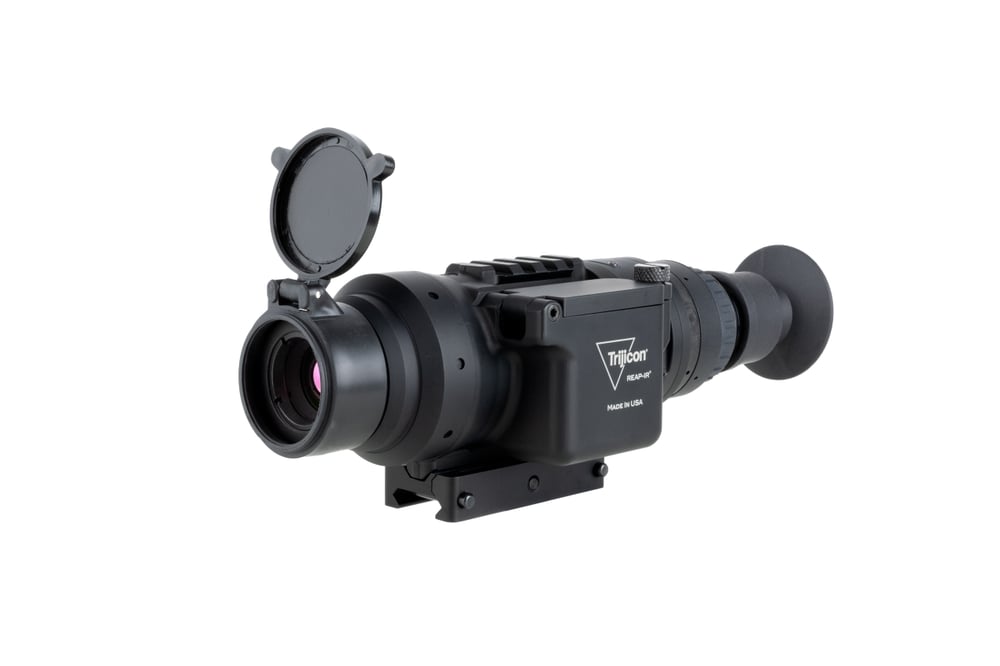

Trijicon - REAP-IR 24 mm Thermal Riflescope with Onboard DVR
Trijicon - REAP-IR 24 mm Thermal Riflescope with Onboard DVR is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
1.2x Base Magnification / 9.6x Combined Magnification
The REAP-IR® thermal riflescope is a small, rugged, and powerful thermal riflescope that lets you engage targets in any light. The heart of the system is a state-of-the art 640x480, 12 micron thermal image sensor that provides superior image quality in any lighting condition. Redesigned electronic hardware and a new digital thumbstick improve system response and enable the use of external USB power sources and digital video recorders. It's also built to last - in the USA.
- Q-LOC Mini Picatinny Rail Mount
- Onboard DVR
- USB-C to USB-C Cable
- User Manual
- Quick Reference Guide
- 2 CR123 Batteries
- Trijicon Logo Sticker
- Shuttered Eye Guard
- Warranty Card
- LENSPEN
- Hard Case
FEATURES:
INTUITIVE TURRET CONTROLS
Simple, improved rotary knobs for easy manipulation of menu options and faster system response.
ONBOARD DIGITAL VIDEO RECORDING
New integrated DVR records 640x480 MP4 video to SD card, or external recorder can be attached via USB-C.
EXPANDED FUNCTIONALITY
USB-C connector allows the use of external battery packs, and download of analog and digital video with available adapter with compatible DVRs
TOP-LOADING BATTERY COMPARTMENT
Redesigned internal battery compartment for a slimmer look and increased durability
MOUNTING VERSATILITY
New quick release mount featuring Trijicon® Q-LOC™Technology provides multiple mounting locations with the ability to affix the scope rapidly and reliably in the dark
IMPROVED RETICLE OPTIONS
User-selectable reticle choices include the classic crosshair, and new MRAD, MOA, .223 REM, .308 WIN, and 300BLK BDC
640x480 THERMAL SENSOR
Offers clear, crisp, imagery through smoke, dust, and complete darkness.
12 MICRON TECHNOLOGY
Smaller image sensors allow for decreased size and weight and increased durability.
MADE IN THE USA
Engineered, designed and manufactured in the USA.
We are engineers at heart, like our founder, Glyn Bindon. Therefore, we are bound by a commitment to seek innovative aiming solutions that constantly redefine “brilliant.” This legacy of innovation is fed by what we call The Science of Brilliant®.
TESTING PROCEDURES INCLUDE:
SPECS
| Length x Width x Height | 7.13 in x 2.9 in x 3.1 in (181.1mm x 73.66mm x 78.74mm) |
| Weight | 27.34 oz. (775.08g) |
| Magnification | 1.2x |
| Objective Size | 24mm |
| Reticle Pattern | MRAD, MOA, .223 BDC, .308 BDC, .300BLK BDC |
| Day Reticle Color | Auto Contrast B/W |
| Night Reticle Color | Auto Contrast B/W |
| Power Source | (2)CR123 or External USB-C |
| Battery Life | ~4 hours |
| Eye Relief | 1.063 in. (27mm) |
| Field of View (degrees) | 18 degrees Horizontal° |
| Mount | Q-LOC Mini Picatinny Rail Mount |
| Diopter Range | -6 / +2 |
| Housing Material | 7075 T6 Aluminum |
| Finish | Matte Black Anodized |
| Submersion Depth | 3.28 ft. (1m) |
| Operating Temperature | -31F to 122F (-35c to 50c) |
| Sensor Type | Vanadium Oxide |
| Digital Zoomm | 8X |
| Sensor Resolution | 640x480 |
| Sensor Pixel Pitch | 12 µm |
|
Focal Length |
24 mm |
|
Frame Rate |
30 Hz / 60 Hz |
| Video Output | 640-480 MJPEG, 30 hz |
Product UPC
719307620513
Model
Reap-IR
Manufacturers Part Number
REAP-24-4
