Bluetti - PV350D 350W Foldable Solar Panel MC4

Reliable Off-Grid Solar Power for Emergency Preparedness & Outdoor Use

The BLUETTI PV350D 350W Solar Panel is a high-efficiency, portable solar solution designed for off-grid power, emergency backup, and outdoor adventures. Built with premium monocrystalline silicon cells and durable ETFE lamination, the PV350D delivers up to 23.4% conversion efficiency—maximizing power output even in low-light conditions.

Whether you’re powering a home backup system, charging a solar generator at basecamp, or preparing for grid-down emergencies, this foldable solar panel provides dependable renewable energy wherever the sun is available.

Key Features

• 350W monocrystalline solar panel with up to 23.4% conversion efficiency
• Advanced ETFE laminated surface for durability, scratch resistance, and high light transmission

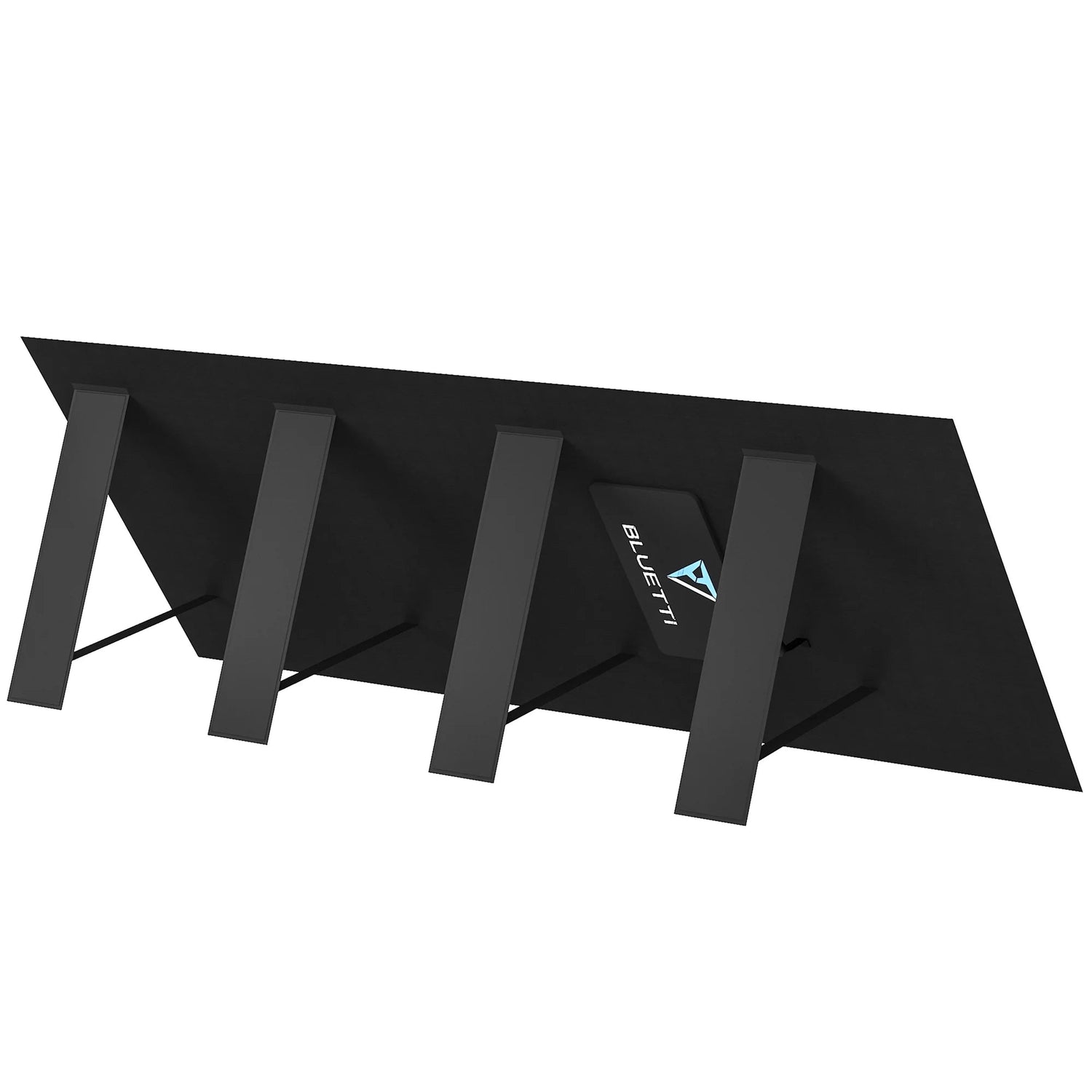

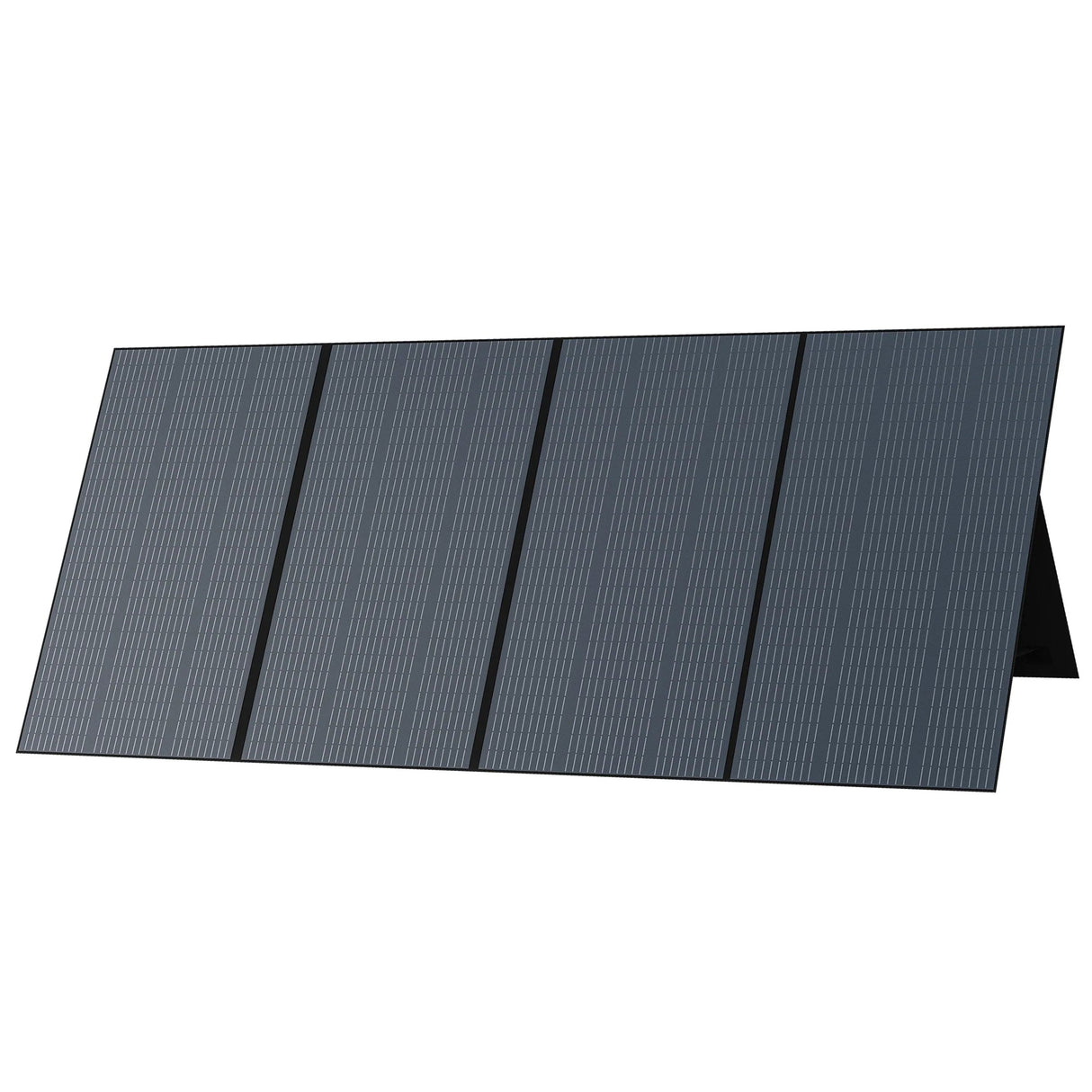

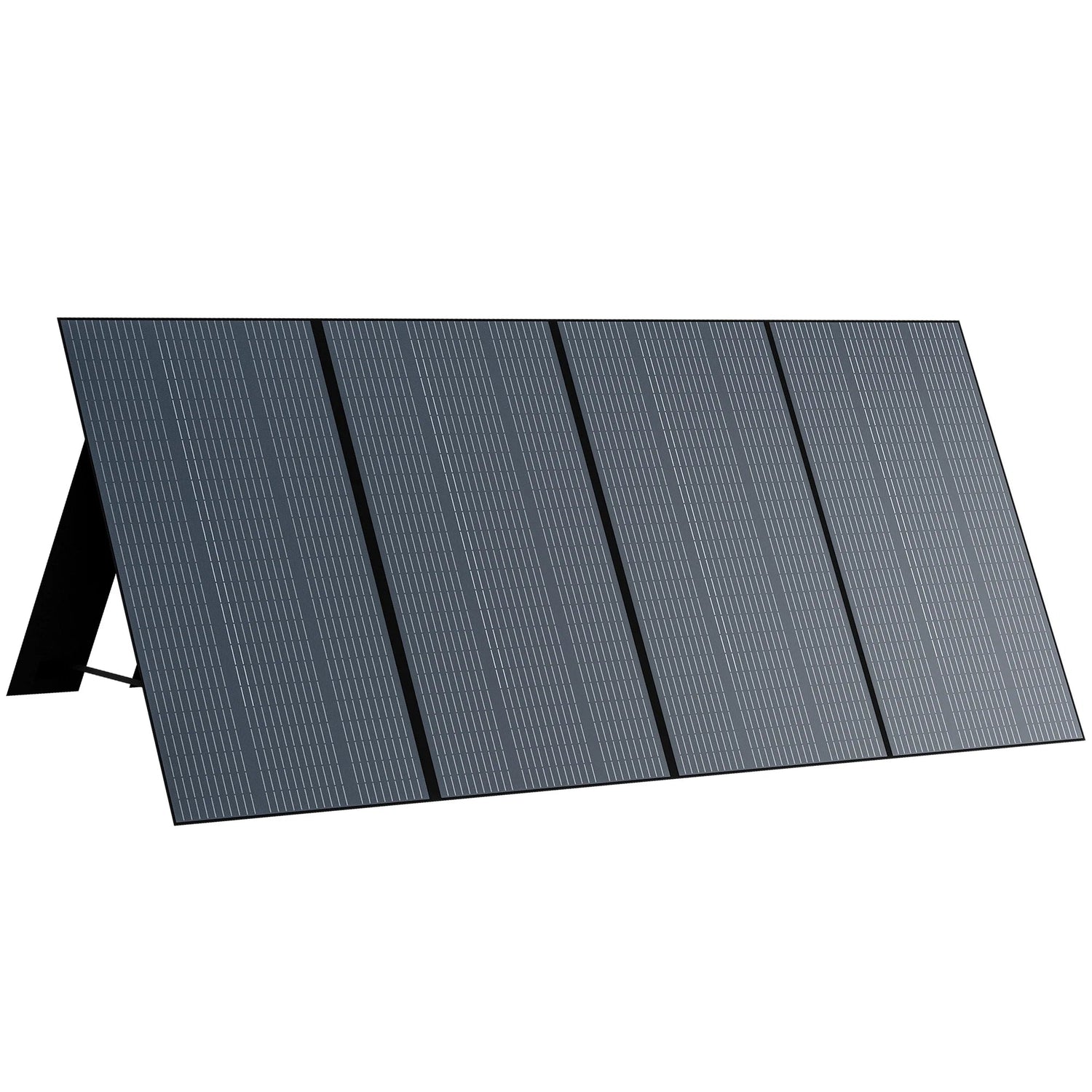

• Foldable, portable design with integrated kickstands for fast setup
• Standard MC4 connectors for wide compatibility with solar power stations
• Splash-proof IP65-rated junction box for outdoor reliability

Built for Preparedness & Off-Grid Power

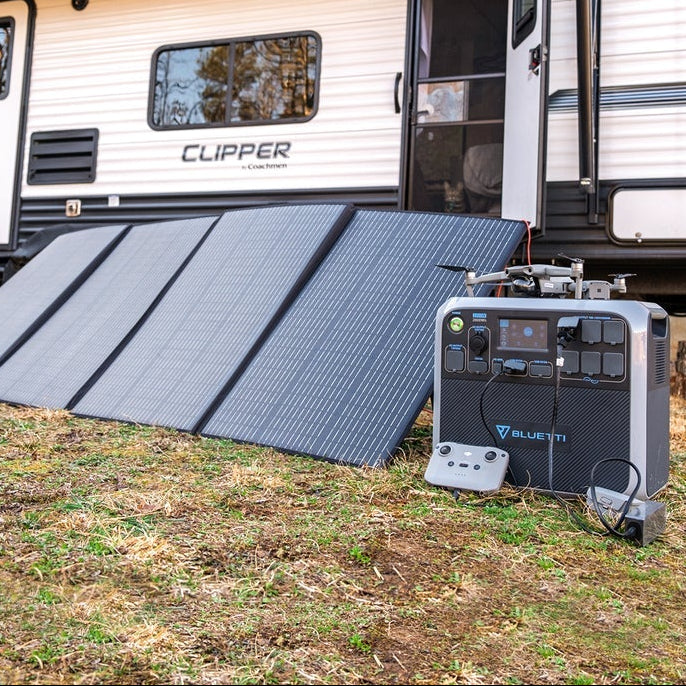

The PV350D is ideal for emergency preparedness, overlanding, RV travel, car camping, and remote job sites. Use it to recharge BLUETTI power stations or compatible third-party solar generators to run critical gear like refrigerators, medical devices, communication equipment, laptops, power tools, and lighting.

Wide Compatibility

• BLUETTI AC200P, AC200MAX, AC200L
• BLUETTI AC300, AC500
• BLUETTI EB150, EB240
• BLUETTI EP500, EP500PRO
• Most MC4-compatible solar generators within voltage and amperage limits

Technical Specifications

• Power Output: 350W
• Cell Type: Monocrystalline Silicon
• Cell Efficiency: Up to 23.4%
• Voltage at Max Power (Vmp): 37.5V
• Current at Max Power (Imp): 9.2A
• Open Circuit Voltage (Voc): 46.5V
• Short Circuit Current (Isc): 10.8A
• Connector Type: Standard MC4
• Weight: 30.6 lbs (13.9 kg)

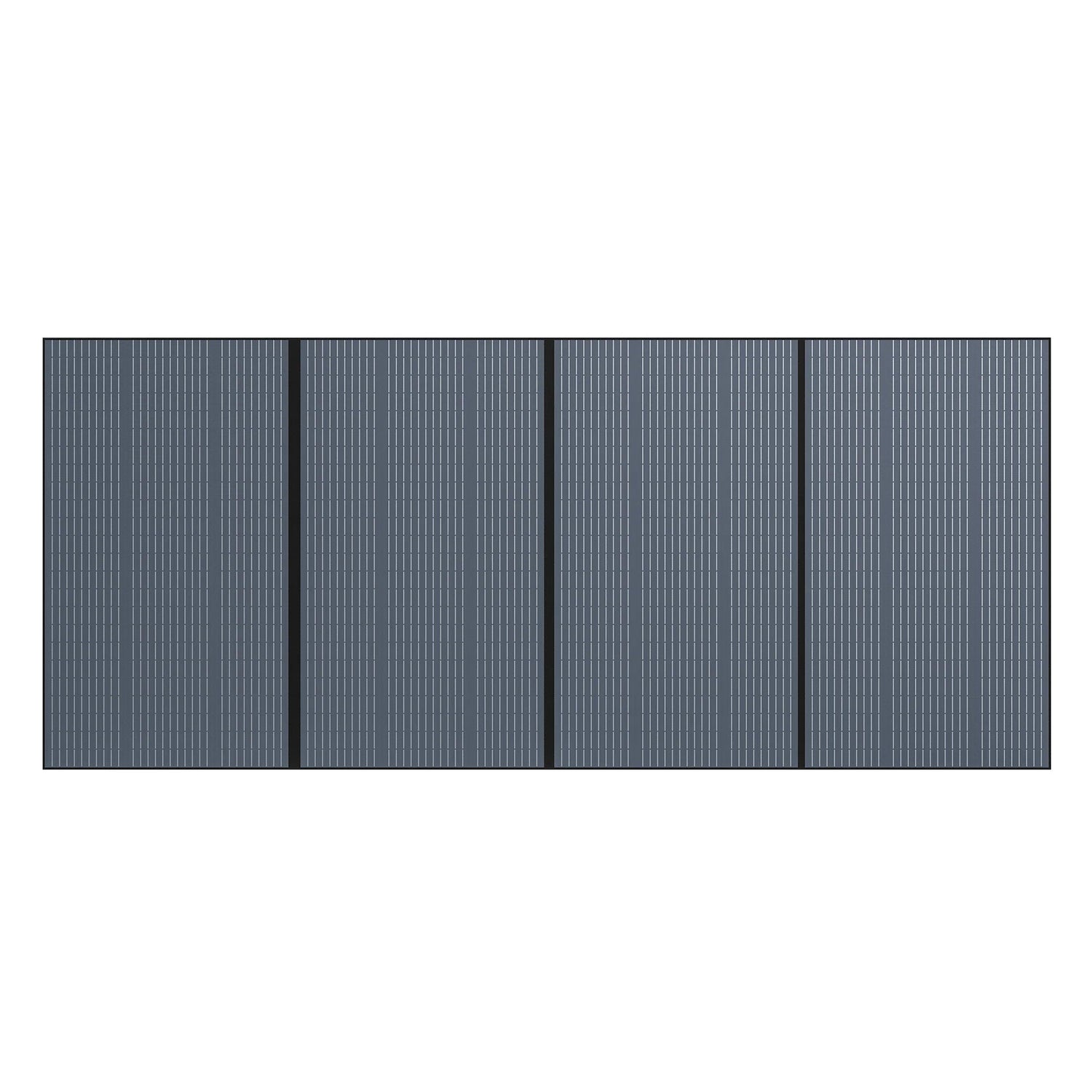

• Dimensions (Unfolded): 35.6 × 94.4 in (90.5 × 240 cm)

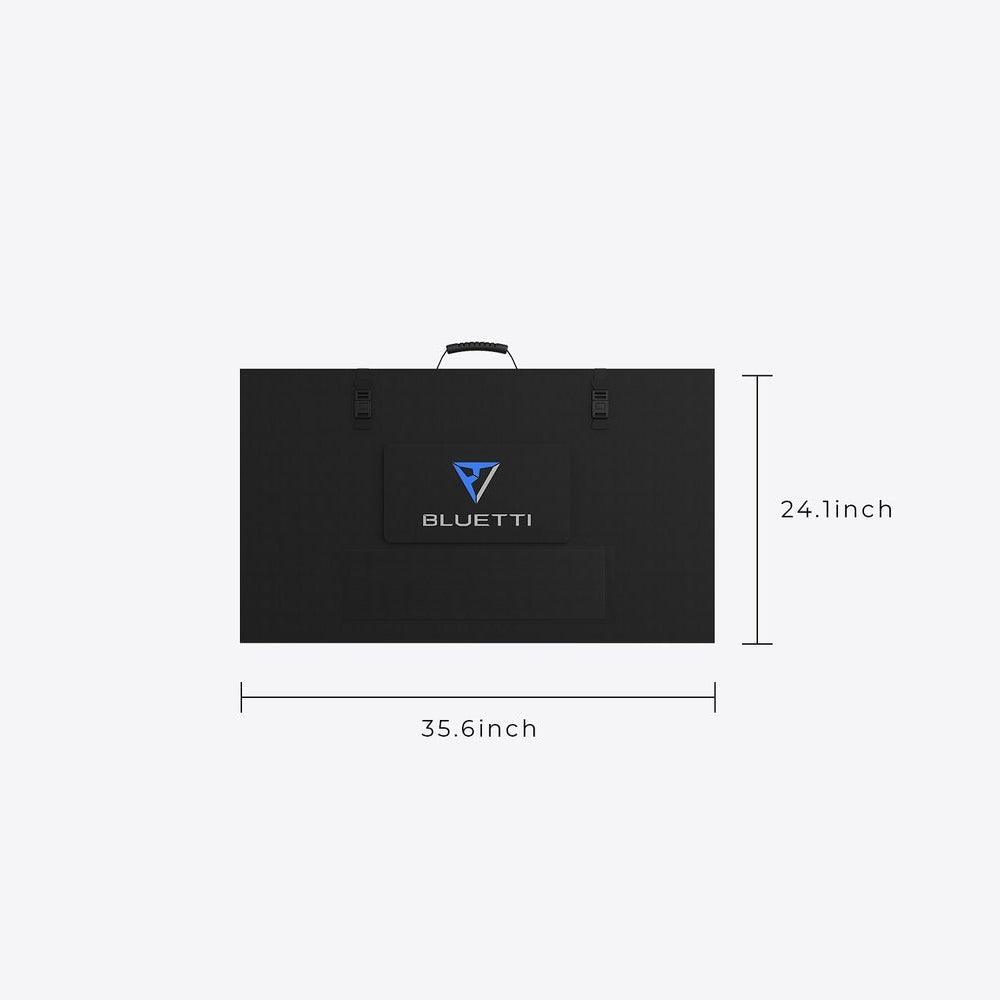

• Dimensions (Folded): 35.6 × 24.1 × 2.5 in (90.5 × 61.3 × 6.5 cm)
• Operating Temperature: 14°F to 149°F (-10°C to 65°C)
• Cable Length: 118 in (3 m)
• Certifications: FCC, CE, ROHS
• Warranty: 12 Months

What’s Included

• BLUETTI PV350D 350W Foldable Solar Panel
• Integrated kickstands
• MC4 output cables (3m)
• User manual

Note: This panel is splash-proof but not designed for permanent outdoor exposure or rooftop installation. Do not submerge or leave exposed to heavy rain.

Frequently Asked Questions

Q1: What are the key specifications of the BLUETTI PV350D?

The PV350D is a 350W monocrystalline solar panel with up to 23.4% conversion efficiency. It features ETFE lamination, outputs 37.5V at max power with 9.2A current, has a 46.5V open circuit voltage, and weighs 30.6 lbs. Unfolded dimensions are 35.6 × 94.4 inches; folded size is 35.6 × 24.1 × 2.5 inches.

Q2: Is the PV350D waterproof?

The junction box is IP65-rated, providing protection against dust and water splashes. The panel itself is splash-proof but should not be exposed to heavy rain, snow, or submerged in water.

Q3: Can the PV350D be permanently installed on a roof?

No. The PV350D is designed as a portable, foldable solar panel with integrated kickstands for temporary ground deployment, not permanent rooftop installation.

Q4: What BLUETTI power stations are compatible?

• AC200P, AC200MAX, AC200L
• AC300, AC500
• EB150, EB240
• EP500, EP500PRO

Q5: Can I use the PV350D with third-party solar generators?

Yes, as long as the power station supports MC4 connectors and the PV350D’s output specifications of 37.5V, 9.2A, and up to 350W. Always verify your generator’s PV input limits before connecting.

Q6: What is the difference between the PV350D and SP350?

The PV350D uses higher-efficiency monocrystalline cells and ETFE lamination, allowing it to generate more power from limited sunlight compared to the SP series, based on BLUETTI lab testing.

Q7: Can I mix the PV350D with other solar panels?

No. When connecting multiple panels, they should be the same model and rating. Mixing PV350D panels with other models or brands is not recommended and may reduce efficiency or damage equipment.

Q8: Does the PV350D include USB ports for direct charging?

No. The PV350D outputs power through standard MC4 connectors and must be connected to a compatible power station to charge devices.

Q9: Why doesn’t the PV350D always produce the full 350 watts?

The 350W rating is measured under Standard Test Conditions. Real-world output varies based on sunlight angle, intensity, temperature, shading, and panel cleanliness.

Q10: How can I maximize solar charging efficiency?

Position the panel directly toward the sun using the built-in kickstands, avoid any shading, keep the surface clean, and allow airflow underneath the panel to prevent overheating.

Q11: What temperature range can the PV350D operate in?

The PV350D operates between 14°F and 149°F (-10°C to 65°C). Peak performance occurs around 77°F (25°C).

Q12: How portable is the PV350D?

The panel folds into a compact 35.6 × 24.1 × 2.5-inch package and weighs 30.6 lbs. It includes a carry handle and integrated kickstands, making it ideal for vehicle-based travel and stationary off-grid setups.

Q13: How durable is the panel surface?

The ETFE laminated surface provides excellent light transmission, scratch resistance, and easy cleaning, making it well-suited for repeated outdoor use.

Q14: How do I choose the right solar panel for my power station?

Check your power station’s PV input voltage and current limits, confirm MC4 compatibility, and ensure total output stays within supported ranges when connecting multiple panels.

Q15: What’s included in the box?

• BLUETTI PV350D 350W foldable solar panel
• Integrated kickstands
• MC4 output cables (118 in / 3 m)
• User manual

Q16: What warranty is included?

The PV350D includes a 12-month manufacturer warranty and is FCC, CE, and ROHS certified.

Q17: Should the panel be covered when not in use?

Do not cover the panel while charging. For storage, fold it and keep it in a cool, dry location away from direct sunlight.

Q18: How long does it take to charge a power station?

Charging time depends on your power station’s battery capacity and available sunlight. Under ideal conditions, divide your battery’s watt-hour capacity by 350W to estimate charge time.
