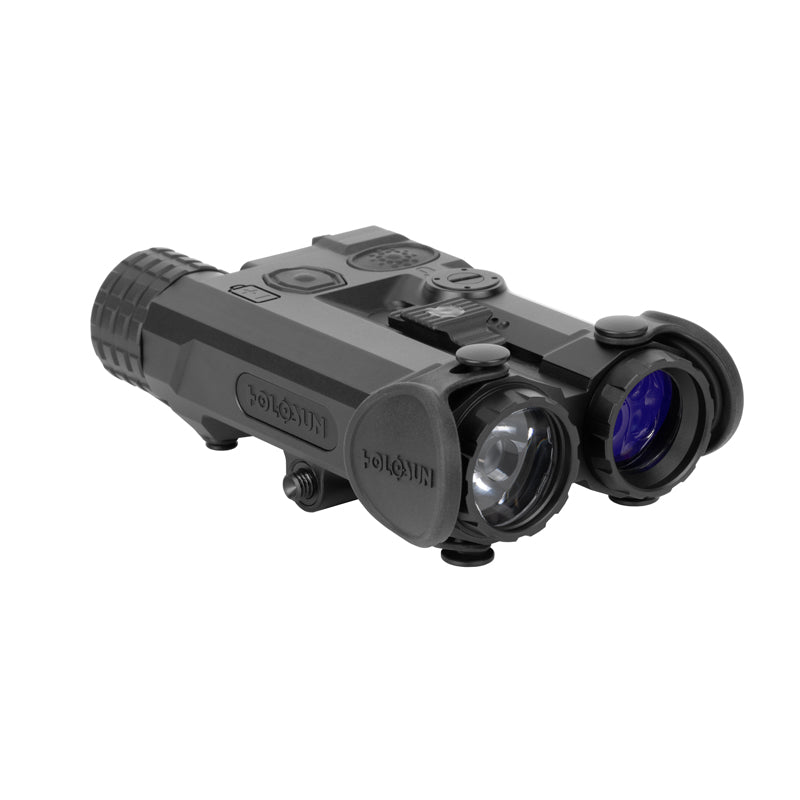

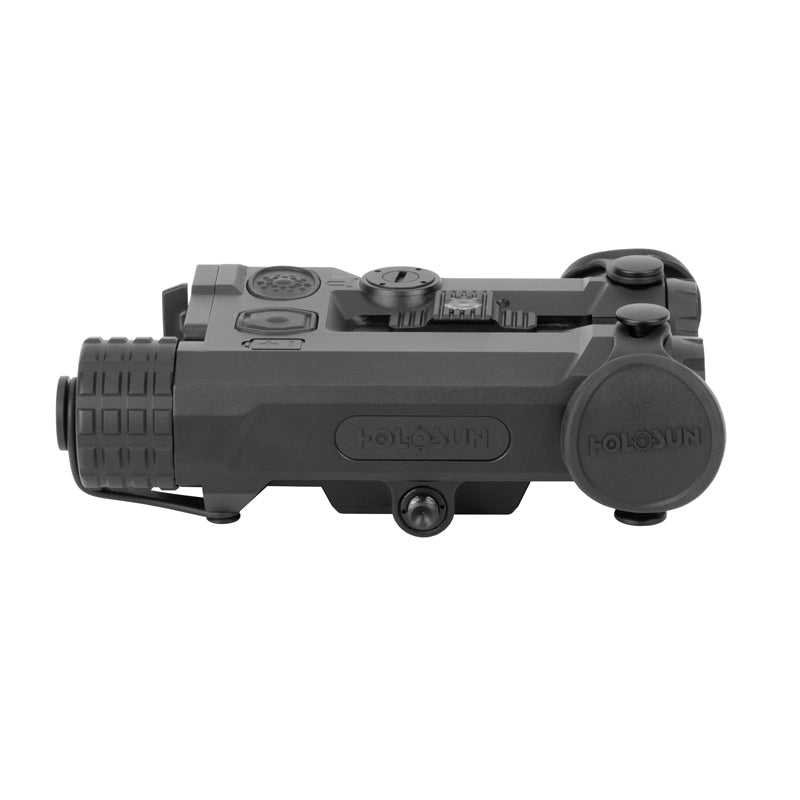

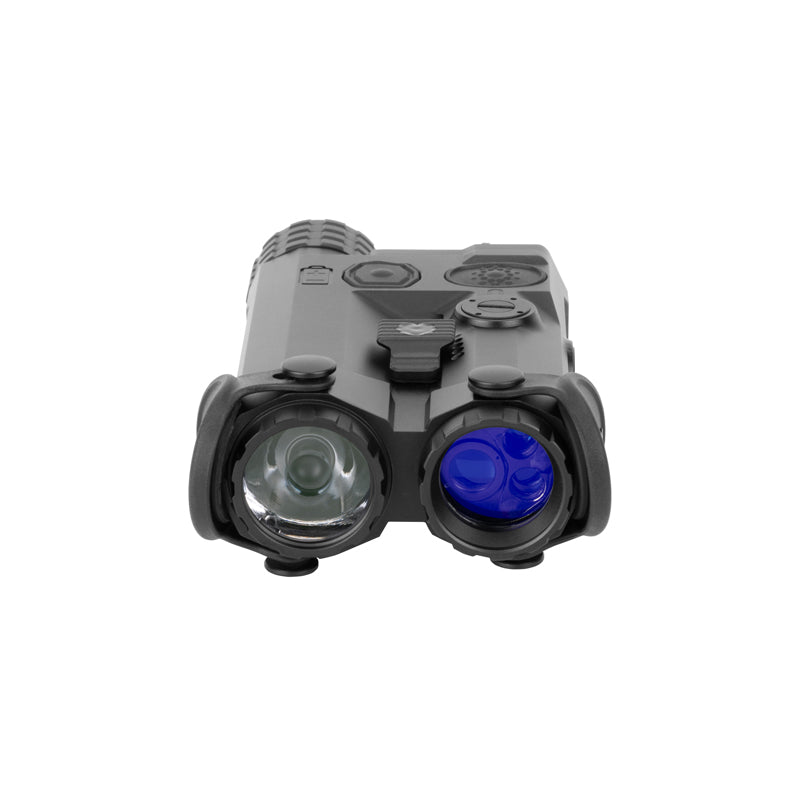

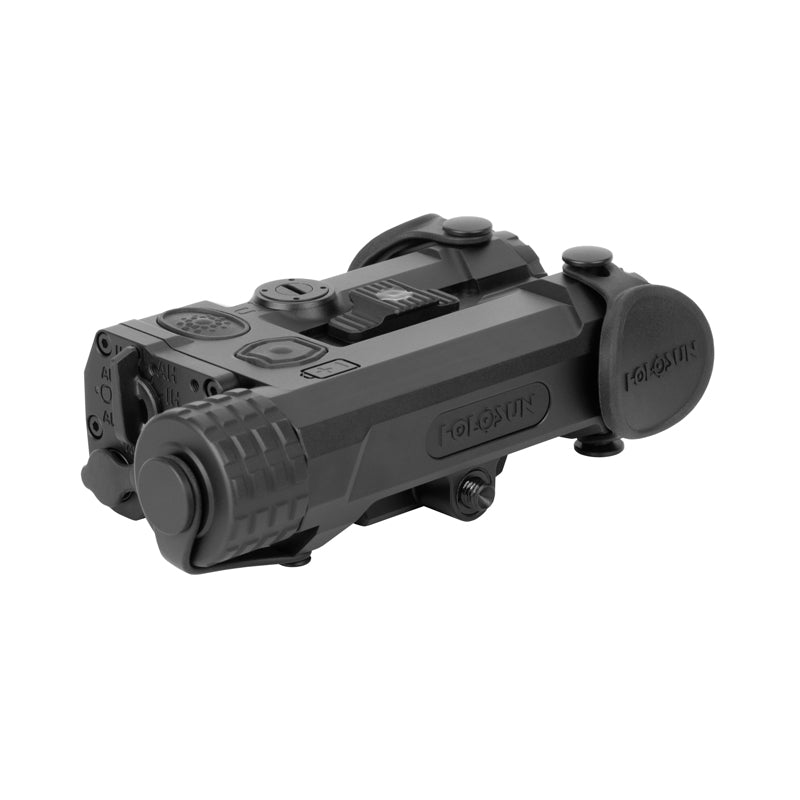

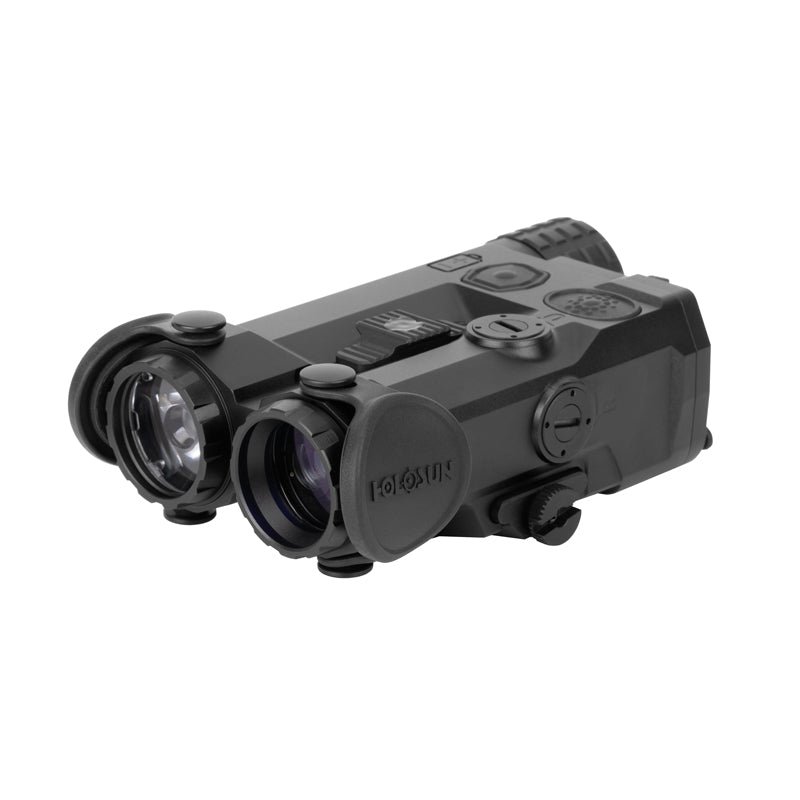

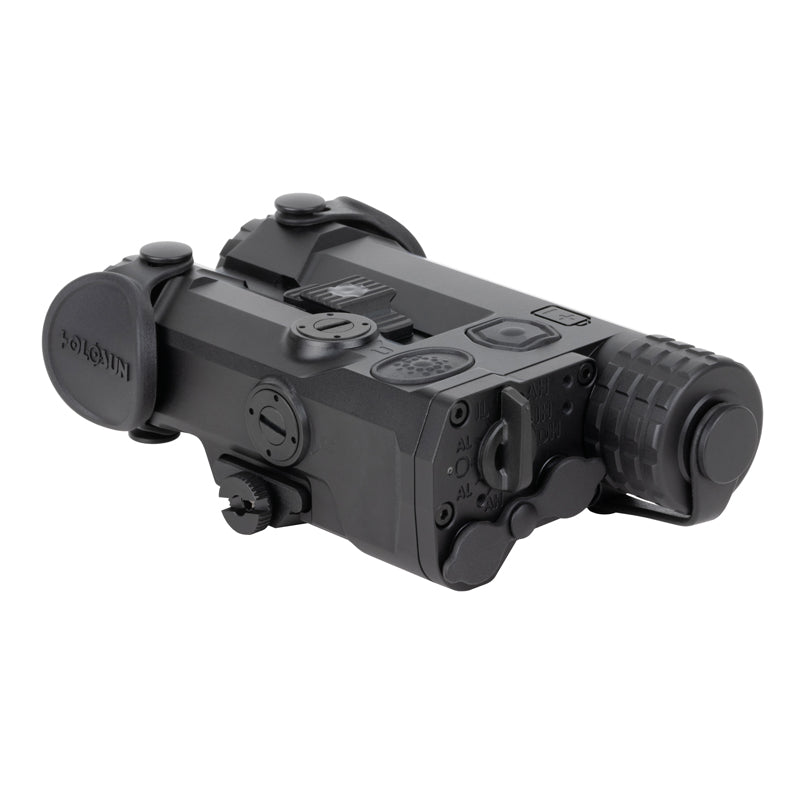

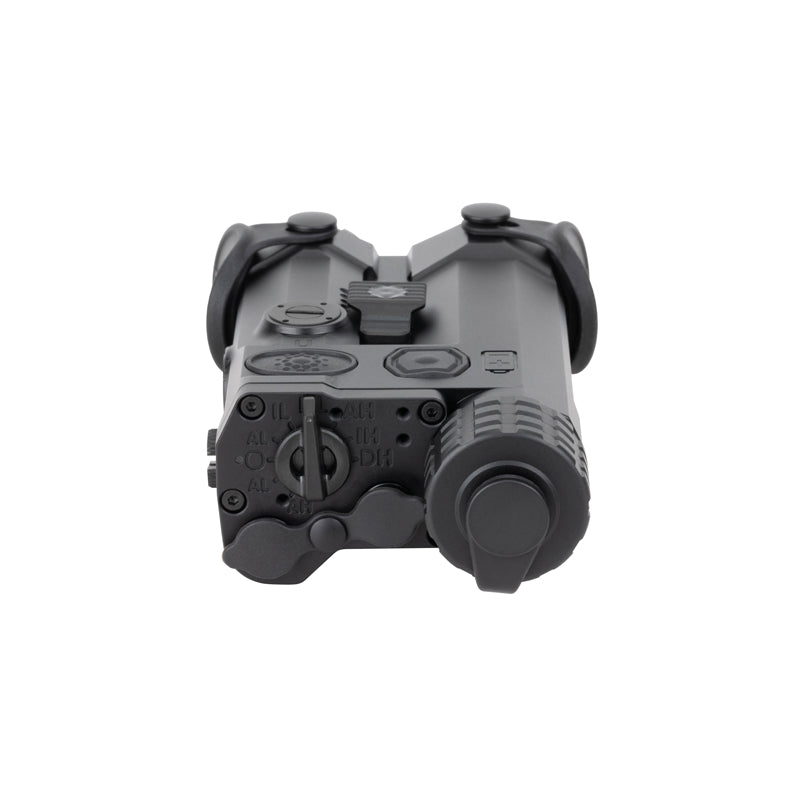

Holosun – IRIS-RD4 Quad Laser & White Light System

The Holosun IRIS-RD4 is a compact, quad-function aiming and illumination system designed for modern night-fighting, duty, and defensive rifle platforms. Precision-machined from 7075-T6 aluminum, the redesigned housing is significantly lighter, lower, and narrower than legacy units—making it an ideal solution for PDWs, SBRs, and full-size rifles where performance and ergonomics matter.

The IRIS-RD4 integrates a co-aligned visible laser, infrared (IR) aiming laser, VCSEL-based IR illuminator, and a powerful white light into a single streamlined unit. This allows seamless transitions between daylight aiming, night vision operations, and high-intensity white light use without changing equipment or mounting solutions.

• Quad-function system: visible laser, IR laser, IR illuminator, and white light
• Co-aligned visible and IR lasers for simplified zeroing
• Optimized for PDWs, SBRs, and rifle platforms
• Precision 7075-T6 aluminum housing with hard anodized finish

At the core of the IRIS-RD4 is a powerful illumination package. The white light delivers 1,000 lumens and 25,000 candela for target identification and situational awareness, while the 60mW VCSEL-based IR illuminator provides strong performance under night vision. A top-mounted IR beam divergence slider allows instant adjustment from wide flood to tight spot, adapting to close-quarters or extended-range use on the fly.

• 1,000-lumen white light with 25,000 candela
• 60mW VCSEL IR illuminator
• On-the-fly IR beam divergence adjustment
• Effective performance through photonic barriers

Control ergonomics are purpose-driven and intuitive. Dual independent fire buttons provide ambidextrous activation of laser and illumination functions, while the rear-mounted power and mode selector streamlines operation. The included three-button remote pressure pad connects via a Crane plug and features a visible-laser override for immediate activation when needed.

• Ambidextrous dual fire buttons
• Rear-positioned power and mode selector
• Crane-plug compatible triple-button pressure pad included
• Visible laser override on remote switch

The IRIS-RD4 offers flexible power options to suit different operational needs. It can run on two included CR123A batteries or a single rechargeable 18650 battery (not included), ensuring reliable performance across environments and mission profiles.

• Powered by 2× CR123A batteries (included)
• Compatible with single 18650 rechargeable battery (not included)
• Designed for consistent output and reliability

Built to withstand harsh conditions, the IRIS-RD4 is rated IPX8 waterproof, tested to 1000G vibration resistance, and engineered to operate in extreme temperatures—making it a dependable solution for duty, training, and preparedness applications.

• IPX8 waterproof construction
• 1000G vibration resistance
• Operating temperature range: -30°C to 60°C

Specifications:

• White Light Output: 1,000 lumens / 25,000 candela
• IR Illuminator: VCSEL 60mW (Class 1)
• IR Laser Output: <0.7mW (Class 1)
• Visible Laser Output: <5mW (Class 3R)
• Adjustment per Click: 0.5 MOA
• Windage & Elevation Travel: ±50 MOA
• Dimensions: 4.2 × 2.3 × 1.4 inches
• Weight: 8.5 oz

Included:

• Holosun IRIS-RD4 unit
• Triple-button pressure pad (Crane plug)
